Description:

Top Features

EASY SERVICE.

The engine protection hood can be opened completely and easily by removing 4 screws. This makes access to all service points for daily maintenance very simple.

OPERATING HOURS COUNTER FITTED AS STANDARD.

Timely maintenance means a longer service life. The operating hours counter, fitted as standard, ensures you can keep track of everything - including the machine's utilisation.

FOLDABLE TRANSPORT HANDLE.

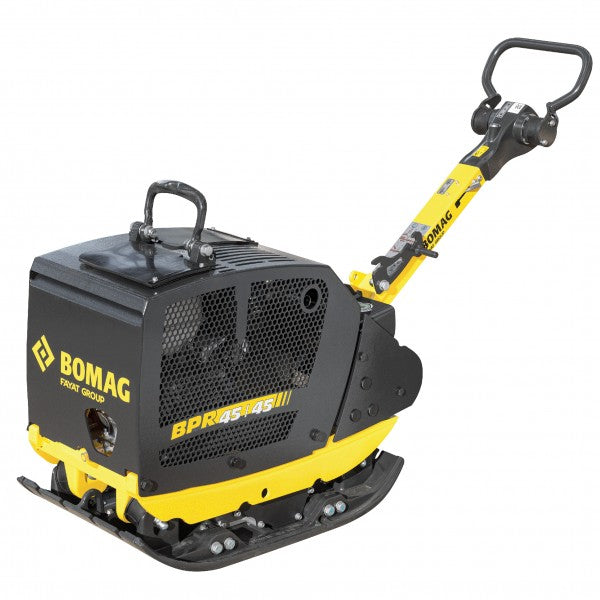

THE VIBRATORY PLATE'S COMPACT DESIGN AND LOW OVERALL HEIGHT ENABLE IT TO WORK EVEN IN THE MOST CONFINED SPACES.

COMFORT HANDLE.

The machine's HAV values are below 2.5 m/s². This results in precise steering and fatigue-free working at the same time.

RELIABLE ENGINE.

The petrol-powered engine provides high compaction power. The supply of genuine spare parts for the BPR 45/45 is also no problem.

RUGGED DESIGN.

The hinged, all-round protection hood offers maximum safety and excellent accessibility to the engine and other components. This saves time and money.

EASY SERVICE.

The engine protection hood can be opened completely and easily by removing 4 screws. This makes access to all service points for daily maintenance

Specifications

• Engine protection hood
• Comfortable control lever
• Low vibration steering rod
• Height adjustable steering rod
• Steering rod lockable in transport and working position
• Vibration and throttle regulation on the steering rod
• Highly wear-resistant, powder-coated base plate
• Automatic decompression
• Multi-functional, foldable single-point lifting facility
• Recoil starter
• Back-up drive protection
• 3-2-1 Warranty
• Hour meter

Weights

Weights (lb)

743

Dimensions

Working width (in)

17.7

Drive

Working speed max. (ft/min)

91.9

Max. gradeability (dep. on soil con.) (%)

35

Engine manufacturer

Honda GX 270

Emission stage

Stage V/CARB P.3

Cooling

air

Number of cylinders

1

Performance SAE J 1349 (hp)

8.4

Speed (min-1)

3.600

Drive system

mech

Fuel

Gasoline

Fuel comsump. aver. during operation (gal/h)

0.4

Exciter system

Frequency (vpm)

69

Centrifugal force (lb)

45.0

Capacities

Fuel (gal)

1.4
