Description:

Quality and performance come standard.

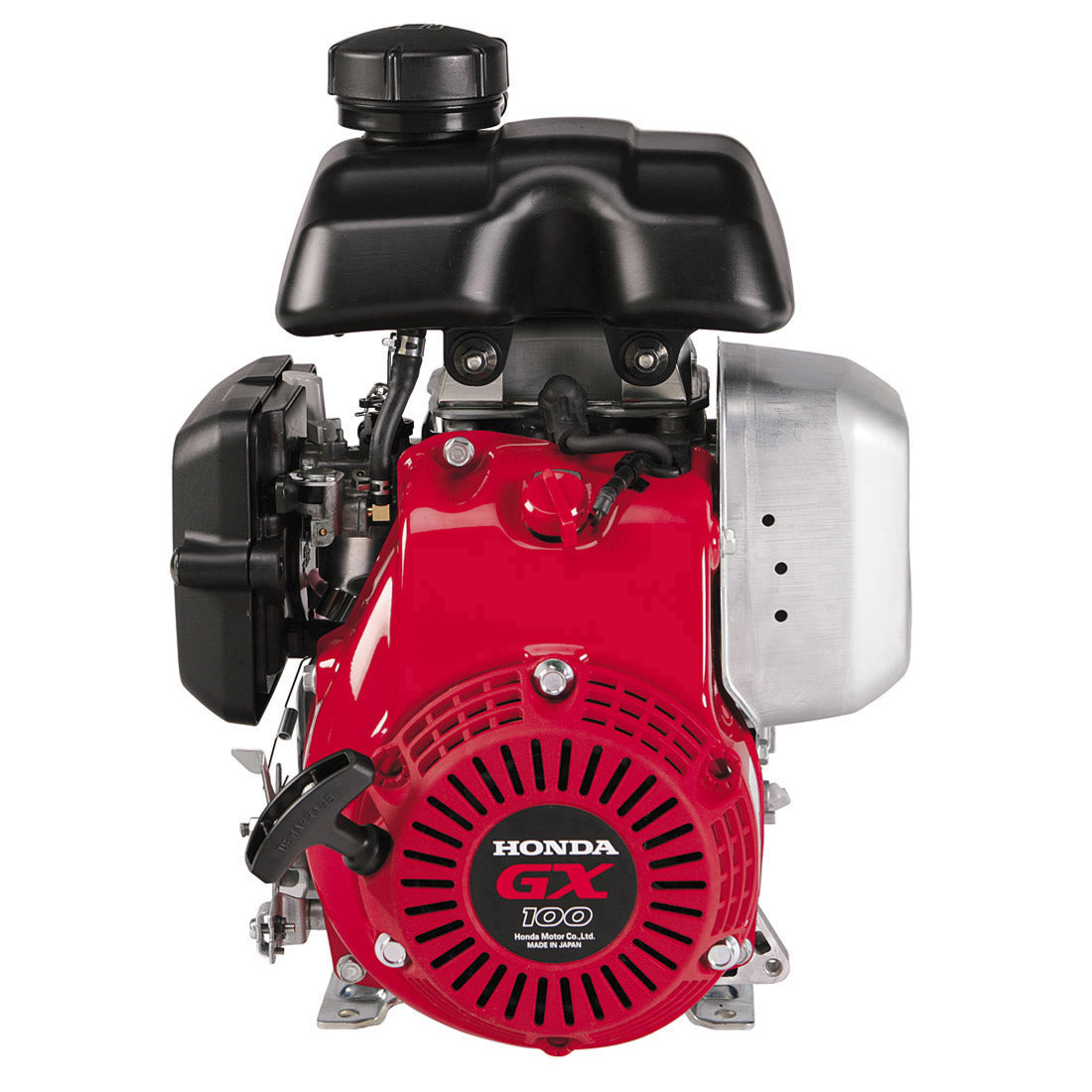

Professionals rely on the GX100 to deliver reliable, easy starting, fuel efficent performance, day in and day out.

Features:

• Common Applications
• Commercial lawn and garden equipment
• Construction / industrial equipment
• Agricultural equipment
• Water pumps

Specification:

Engine

• Engine Type: Air-cooled 4-stroke OHC
• Bore x Stroke: 56 x 40 mm
• Displacement: 98.5 cm³
• Net Power Output: 2.8 hp (2.1 kW) @ 3,600 rpm
• Net Torque: 4.2 lb-ft (5.7 Nm) @ 3,600 rpm
• PTO Shaft Rotation: Counterclockwise (from PTO shaft side)
• Compression Ratio: 8.5:1
• Carburetor: Float Type
• Ignition System: Transistorized magneto
• Starting System: Recoil
• Lubrication System: Splash
• Governor System: Centrifugal Mechanical
• Air Cleaner: Dual element
• Oil Capacity: 0.42 US qt (0.40 L)
• Fuel Tank Capacity: 0.81 U.S. qt (0.77 L)
• Fuel: Unleaded 86 octane or higher
• Dry Weight: 23.4 lb (10.6 kg)
• WARNING: California Prop 65 Info

Dimensions (GX100)

• Length (min): 11.6" (295 mm)
• Width (min): 12.0" (304 mm)
• Height (min): 15.8" (402 mm)
