Description:

Features:

• 2-Year Consumer & 2-Year Commercial Warranty
• Great for generators, pumps, small lawn/garden equipment

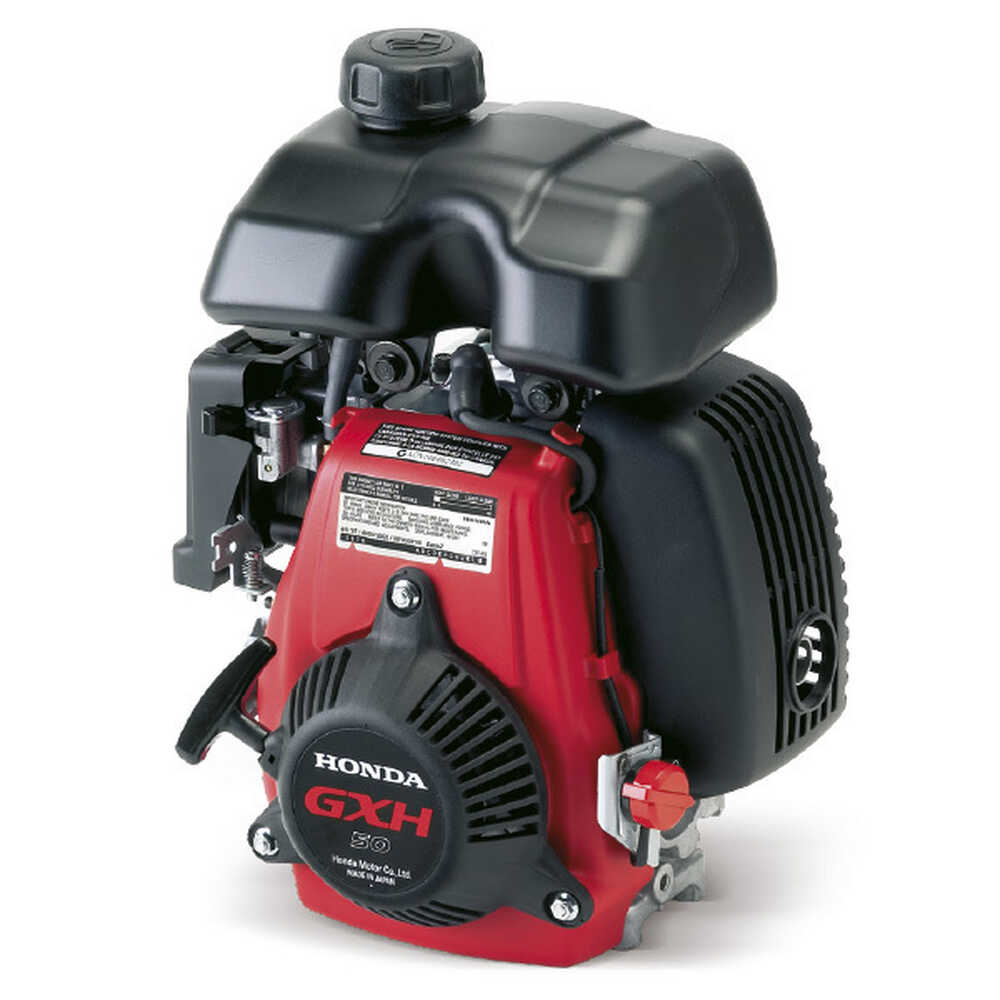

• Honda GXH50™ Series Single Cylinder Air-Cooled 4-Cycle Gas Engine
• Produces 2.0 ft-lbs of torque @ 4000 RPM - Power levels are stated Net torque
• Overhead Valve (OHV) Technology
• Maximizes fuel efficiency while reducing noise and vibrations
• Ball Bearing Supported Precision Camshaft Design
• Optimized valve timing / overlap for smooth & fuel efficient power
• Splash Lubrication System
• Combined with a cast iron cylinder sleeve for increased wear resistance & long life
• Heavy-Duty Recoil Starter w/ Automatic Mechanical De-Compression System
• Requires less pulling force, for easier and quicker starting
• Float-Type Carburetor & Fuel Shut-Off Valve
• Allows for more reliable starting, safety and longevity
• Advanced chamber coating & filter helps reduce gum and varnish
• Quieter Operation
• Noise-reducing materials, advanced air intake & multi-chamber exhaust
• Automotive-Type Fuel Cap
• Makes it easier and cleaner to fill up the tank
• Easy Maintenance
• Operator-friendly oil fill/drain & spark plug location

Specifications:

• Series: Honda GX
• Style: Vertical
• Type: 4-Cycle OHV
• Cylinders: 1
• Cooling System: Air-cooled
• Displacement: 49.4 cc
• Horsepower: 2.1 HP
• Net Torque: 2.0 lb-ft
• Dry Weight: 12.1 lbs
• Made in USA: No

Engine Dimensions

• Length: 8.9 in
• Width: 10.8 in
• Height: 13.0 in

Cylinder

• Bore: 1.65 in
• Stroke: 1.42 in
• Compression Ratio: 8:1
• Bore Type: Cast Iron

Starting & Ignition

• Starting System: Recoil Only
• Ignition System: Transistorized Magneto

Lubrication

• Type: Splash
• Oil Capacity: 8.3 oz
• Oil Filter: No

Fuel System

• Fuel Type: Gasoline
• Carburetor: Float Type
• Air Cleaner: Dry (Paper)
• Fuel Tank Size: 0.2 gallons
• Fuel Tank Included: Yes

Crankshaft

• Rotation Direction: Counterclockwise
• Type: Straight
• Diameter: 5/8 in
• Length: 1-1/4 in
• End Tapped Size: 1/4"-28
• Keyway Width: 3/16 in
• PTO Height: 3-11/32 in

Warranty

• Consumer Warranty: 2 Years
• Commercial Warranty: 2 Years
