Description:

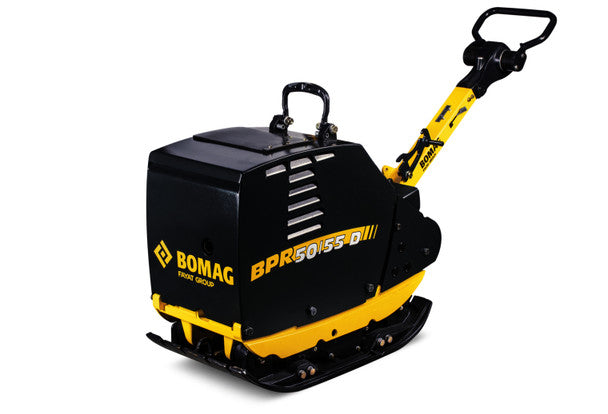

Reversible vibratory plates: Medium-weight powerhouses: BPR - performance class 45 to 60 kN. The 772 to 1,102 lbs operating weights of these diesel-operated vibratory plates from BOMAG provide excellent compaction results and superb surface coverage, especially on earthworks and paving work. Engine protection hood Comfortable control lever Low vibration steering rod Height adjustable steering rod Steering rod lockable in transport and working position Vibration and throttle regulation on the steering rod Highly wear-resistant, powder-coated base plate Automatic decompression Multi-functional, foldable single-point lifting facility Extension plates (550mm) Electric starter Recoil starter Back-up drive protection Warning signal at low oil level (BPR45/55D) 3-2-1 Warranty Hour meter

TECHNICAL CHARACTERISTICS

FREQUENCY

66 Hz

CENTRIFUGAL FORCE

60 kN

FUEL

Diesel

DRIVE TYPE

Mechanical

COOLING

Air

ENGINE TYPE

Combustion (diesel), single cylinder

ENGINE POWER

6.8 kW / 9.2 KM

PLATE WIDTH

550 mm

MAXIMUM GRADEABILITY

35 %

ENGINE MODEL & MANUFACTURER

Hatz 1B40

RPM

3000/min

ADVANCE TRAVEL

28 m/min

THE SMALLEST RIDE HEIGHT

790 mm

START

Electric

FUEL TANK CAPACITY

5 l

WEIGHT

400 kg
