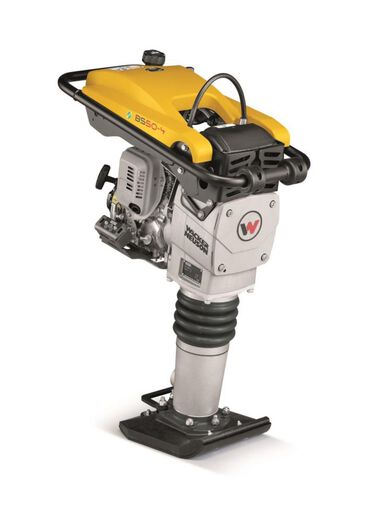

Wacker Neuson 5100030598 BS50-4AS Vibratory Rammer

DESCRIPTION

 Wacker Neuson BS50-4As (5100030598) 2.7kW 4-Stroke Vibrator Rammer

Wacker Neuson's 4 stroke rammers are classified by an excellent performance which is sustainably convincing. The high stroke energy, high percussion rate and long shoe stroke combined with a fast advance travel achieve excellent compaction results. Well thought-out features make the use of the 4 stroke rammers even more user-friendly, extend the service life and reduce maintenance to a minimum.

Features:

• Fast starting due to a small pump to the carburetor
• Strong stroke for heavy, cohesive soils
• Integrated oil deficiency protection with automatic shutdown when the engine is started with insufficient oil level
• Premium air filter ensures an almost dust-free engine operation and provides three times longer change intervals
• Large and flexible transport lug
• Easy loading and stowing by transport rollers on the handle

Specifications:

• Engine/motor: Honda GXR 120
• Engine/motor type: Air-cooled single-cylinder four-cycle gasoline engine
• Displacement: 121cm³
• Fuel consumption: 1L/h
• Rated performance (DIN ISO 3046-1): 2.7kW
• Motor run speed: 4100rpm
• Fuel tank capacity: 2.9L
• Percussion rate: 656bpm
• Stroke on the ramming shoe: 61mm
• Impact force: 16kN
• Operating speed: 7.1m/min
• Surface capacity - compaction: 119m²/h
• Ramming shoe size (W x L): 280mm x 340mm
• Dimensions (L x W x H): 673mm x 343mm x 940mm
• Weight: 65kg

Warranty:

• 5 Years Warranty Covered By Wacker Neuson Australia
